Need to Know Information

Why should Consumers use TMR Joysticks?

The original design of Sony, Microsoft, and Nintendo game controllers uses traditional resistive film joystick technology with a constant power supply design, with a power capacity limited to about 1mA. The power consumption of a single TMR sensor is between 0.1mA and 0.3mA, while a single linear Hall sensor consumes 0.5mA to 2mA. This makes the linear Hall Sensors not work very well, while the TMR electromagnetic joystick has lower power consumption and performs much better, The TMR electromagnetic joystick can be installed as a perfect 1:1 replacement without any other circuit modifications.


Warning - Read Paragraph - Do Not Deviate


Since the joystick models vary across different controllers and have size differences, do not remove and replace just the side components of the joystick. Instead, the entire joystick needs to be replaced as a whole. Attempting to replace only the individual components on the joystick may result in issues like joystick damage or poor centring performance.

Interested in getting this product installed on your controller

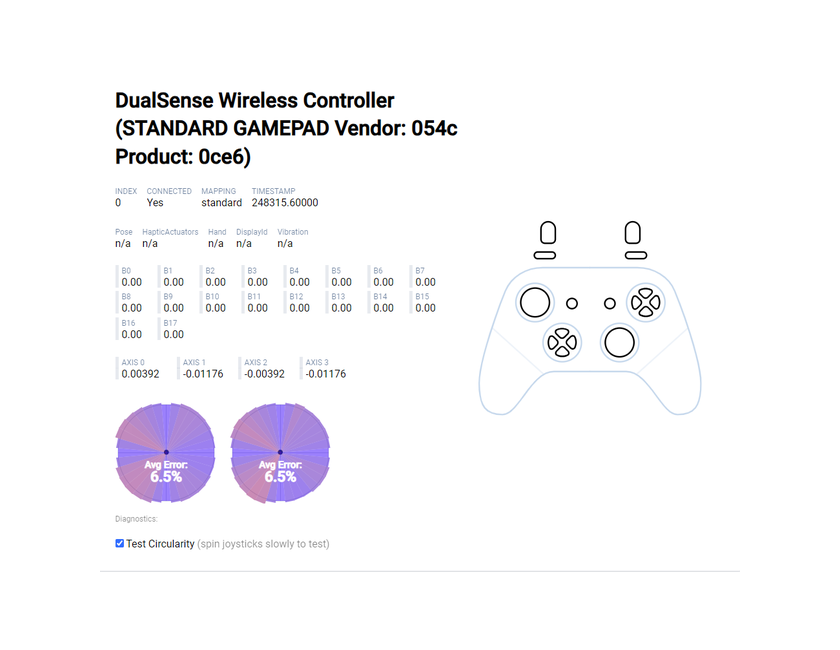

Image of PS5 Controller Calibration

Controller Calibration

When you change Hardware like a Joystick in your PS4, PS5 or Series Controller you must calibrate the joysticks to the controller, it does not matter whether the joysticks are Variable Thin Film Potentiometers, Hall Effect or TMRs, they must be calibrated after their installation.

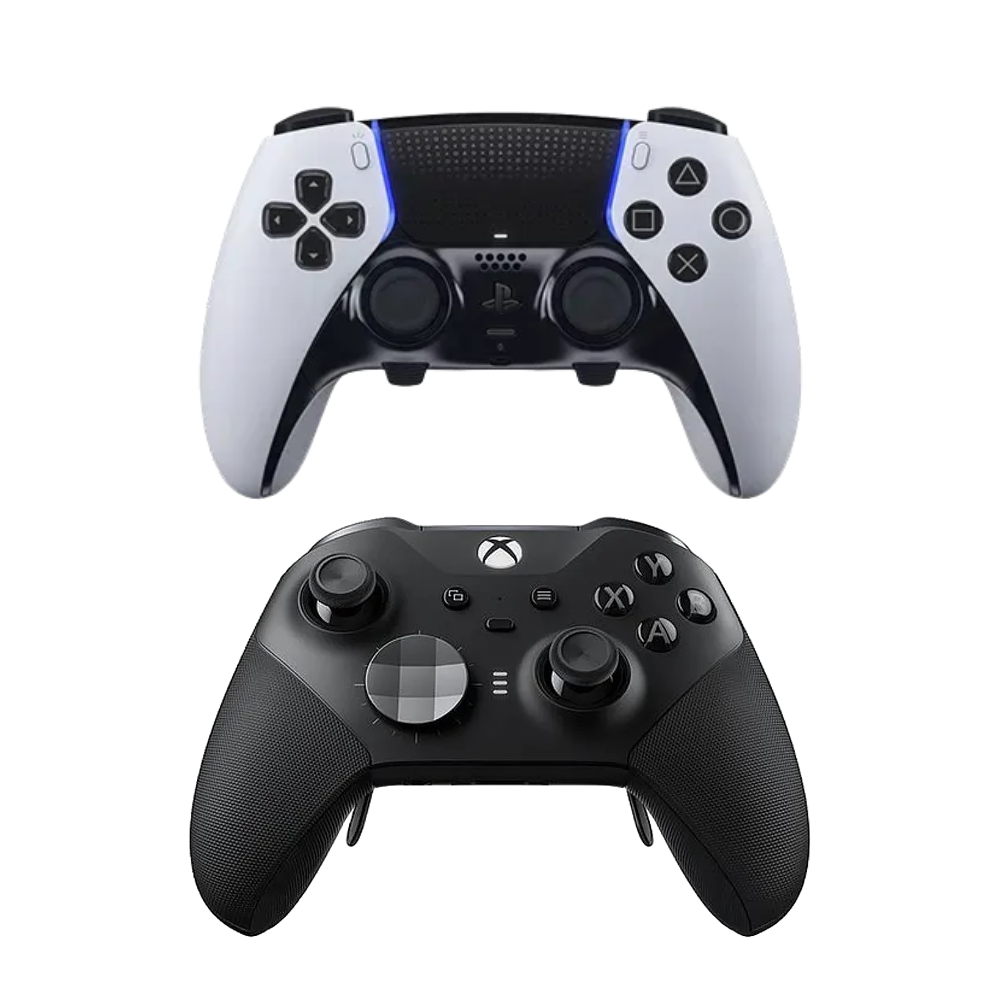

Edge-&-Elite-Controllers

What Controllers Can Be Calibrated

Microsoft's Series Controller can be Calibrated via the Xbox Accessories App on your console or PC. Sony's PS4 Dual Shock and PS5 Dual Sense can be Calibrated via https://dualshock-tools.github.io/... The PS5 Edge Controller can carry the GuliKit TMRs with a secondary Driver Mod installed to the Quick Release Joysticks... The Microsoft Elite Series Controller can use the GuliKit TMRs but you have to give up the Interchangeable Mag Thumbstick Toppers or AKA (Mag-Hats / Mag Caps). You have to ask yourself if it worth forgetting Mag Thumbstick Toppers for no drift on your Controller.

Down to the Nitty Gritty

The Xbox Series Elite Controller installation is nearly as simple as installing the GuliKit TMRs into the standard Series Controller but more care is needed on the teardown and there's a little more to do. Once you've installed the GuliKit TMRs you can then assemble and calibrate the GuliKit TMRs through the Accessories App with the correct procedure, which takes a little time.

The PlayStation Dual-Sense Edge Controller installation is completely different due to the nature of the controller's Interchangeable quick-release joystick units. They also carry the Alps thin film potentiometers which are, as all know installed in the standard PlayStation Dual-Sense Controllers, so they also suffer from the same old drift issues.

If you want TMRs in the PS5 Edge Controller you have to go one step further and spend a little more money for this reliability.

Want to Know More - Please Make Contact
